Automotive Electronics PCBA

Automotive central control screen display PCB assembly

Automotive central control screen display PCB assembly

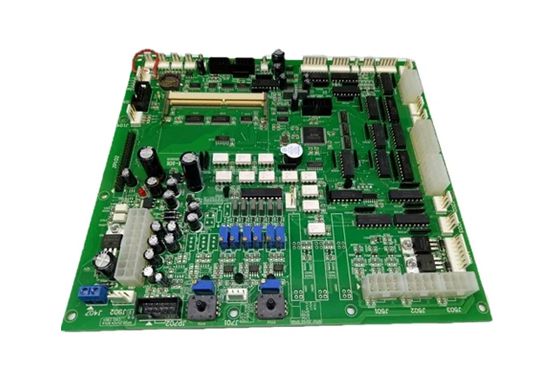

PCB assembly Name: Automotive central control screen display PCB assembly

Surface Finishing: HASL, Enig, OSP, Immersion Au, AG, Sn

PCBA-Testing: X-ray, AOI

Flame Retardant Properties: V0

Processing Technology: ElectrolytIC Foil

Insulation Materials: Organic Resin

Material: Complex

Applicaton: Industrial PCB PCBA

Transport Package: Packed in Carton

Specification: Copper

Layer: 1-18 Layer

Product Details
Data Sheet
Product NamePCB & PCBA
TypeRigid
MaterialFR4, CEM1, CEM3, high frequency board,
Layer1, 2, 4, 6...20Layer
ShapeRetangular, Round, Slots, Cutouts, Complex, Irregular
CuttingShear, V-score, Tab-routed
board Th IC kness0.2-4mm, regular 1.6mm
Copper Thickness0.5-4oz, regular 1oz
Solder MaskGreen, Red, Blue, Yellow, etc.
Silk ScreenWhite, Black, etc.
Silk Screen Min Line Width0.006" or 0.15mm
Min Trace/Gap0.1mm or 4mils
Min Drill Hole Diameter0.01", 0.25mm or 10mils
Surface FinishHASL, ENIG, OSP, etc.


What we need:
* Gerber files of the bare PCB
* Bill of materials to include:  Manufacturer's part number, type of part, type of packaging, component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)


Automotive central control screen display PCB assembly


F.A.Q


Q: What files do you use in bare PCB fabrication?

A: Gerber RS-274X, 274D, Eagle and AutoCAD's DXF, DWG


Q: What format of Bom List you prefer?

A: We prefer in MS-Excel with components part No., Manufacturer, Quantity, Value info, other format are also accepted.


Q: How can i know the processing about my PCBA order?

A: Each Customer will have a sale to contact with you. Eastwin working hours: AM 9: 00-PM 6: 00(Beijing Time) from Monday to Friday. we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.


Q: How long will we get the quotation after providing pcb gerber file, completed bom list, part datasheet and PNP file?

A:  The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.


Q: If all PCBAs will be tested before delivery if we provide the function testing method?

A: Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.

PCB assembly Name: Automotive central control screen display PCB assembly

Surface Finishing: HASL, Enig, OSP, Immersion Au, AG, Sn

PCBA-Testing: X-ray, AOI

Flame Retardant Properties: V0

Processing Technology: ElectrolytIC Foil

Insulation Materials: Organic Resin

Material: Complex

Applicaton: Industrial PCB PCBA

Transport Package: Packed in Carton

Specification: Copper

Layer: 1-18 Layer

Copper Thickness: 0.5oz-6oz

board Thickness: 0.2mm-4mm

Min.Hole Size: 0.1mm (4 Mil)

Min.Line Spacing: 0.1mm (4 Mil)

PCBA QC: X-ray, Aoi Test, Function Test(100% Test)

Specialised: Consumer, LED, Medical, Industrial, control board

Delivery: PCB, 7-10 Days;PCBA, 2-3weeks

Service: PCBA/PCB Assembly/pcb circuit board

Other Service: PCB/PCB layout and design, Engineering Support
