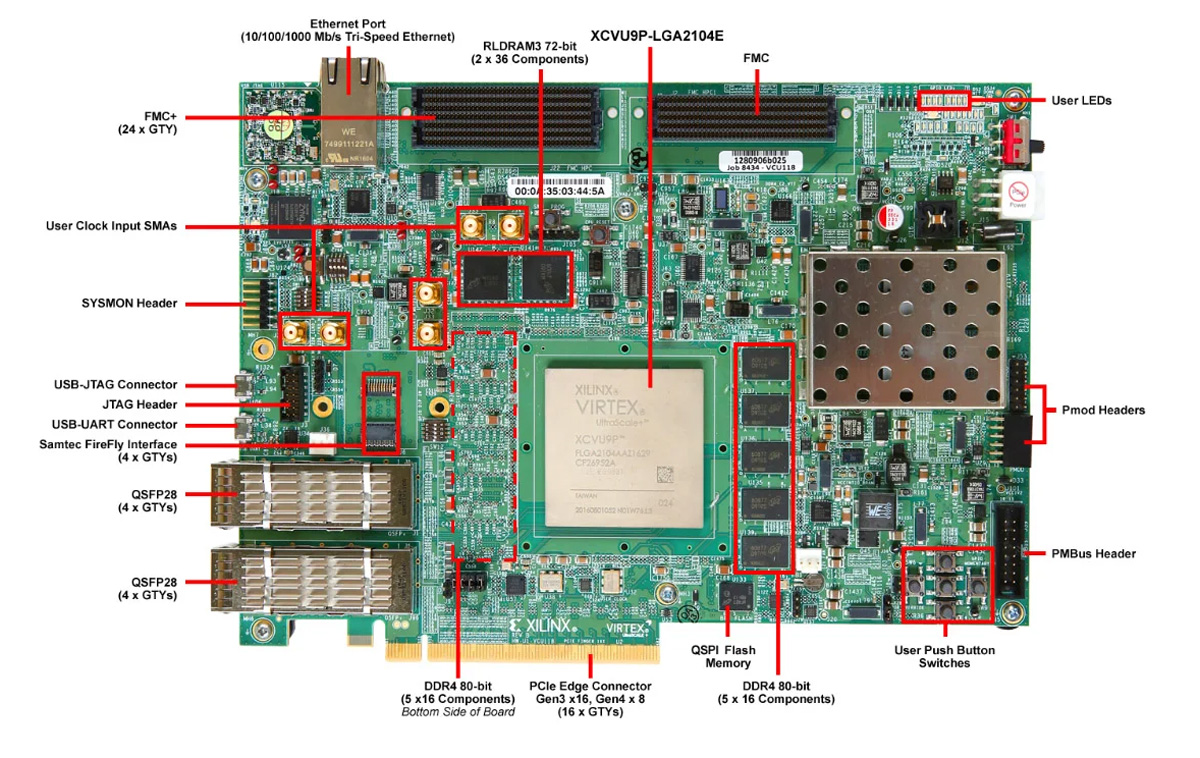

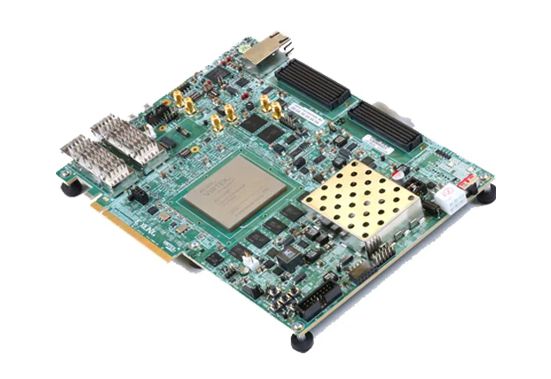

The VCU118 evaluation board features are listed here. DetaiLED information for each feature is provided in Component Descriptions in Chapter 3.
Virtex UltraScale+ XCVU9P-L2FLGA2104 devICe
Zynq®-7000 SoC XC7Z010 based system controller
Two 2.5 GB DDR4 80-bit component memory interfaces (five [256 Mb x 16] devices each)
288 MB 72-bit RLD3 memory interface comprised of two 1.125 Gb 36-bit devices
Dual 1 Gb Quad SPI flash memory (BPI flash on pre-Rev. 2.0 boards)
USB JTAG interface using a Digilent module with separate micro-B USB connector
Clock sources:
● Si5335A quad clock generator
● Three Si570 I2C programmable LVDS clock generators
● One SG5032 fixed 250 MHz LVDS clock generator
● Si5328B clock multiplier and jitter attenuator for QSFP
● Subminiature version A (SMA) connectors (differential)
52 GTY transceivers (13 Quads)
● FMC+ HSPC connector (twenty-four GTY transceivers)
● 2x28 Gb/s QSFP+ connectors (eight GTY transceivers)
● Samtec Firefly connector (four GTY transceiver)
● PCIe 16-lane edge connector (sixteen GTY transceivers)
PCI Express endpoint connectivity
● Gen1 16-lane (x16)
● Gen2 16-lane (x16)
● Gen3 8-lane (x8) (Pre-Rev. 2.0 VCU118 board VCCINT = 0.72V)
● Gen3 16-lane (x16) (VCU118 Rev. 2.0 and later VCCINT = 0.85V
Ethernet PHY SGMII interface with RJ-45 connector
Dual USB-to-UART bridge with micro-B USB connector
I2C bus
Status LEDs
User I/O (4-pole DIP switch, 6 each push-button switches, 8 x LED)
Two Pmod 2x6 connectors (one male pin header, one right-angle receptacle)
VITA 57.4 FMC+ HSPC connector J22
VITA 57.1 FMC HPC1 connector J2
Power management with PMBus voltage monitoring through Maxim power controllers and GUI
10-bit 0.2 MSPS SYSMON analog-to-digital front end
Configuration options:
● Dual Quad SPI flash memory
● Digilent USB configuration module
● Platform cable USB II interface 2x7 2 mm connector
