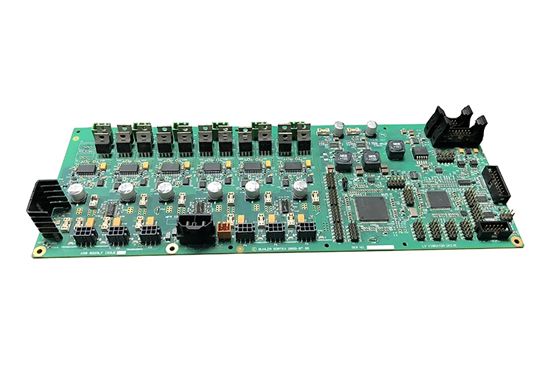

OEM Electronic Medical Equipment PCB Customized
Name:OEM ElectronIC Medical Equipment PCB Customized
PCBA-Testing: X-ray, AOI
SMAll Order: Acceptable
Type: Rigid circuit board
Flame Retardant: V0
Processing Technology: Electrolytic Foil
Insulation Materials: Organic Resin
Material: Complex
Transport Package: Antistatic package+Plastic Box and Carton Box
TradeMARK: Customized
Origin: Shenzhen China
PCB capability
| Layer count | 1-48 layers |
| Material | fr4, Tg=135, 150, 170, 180, 210, cem-3, cem-1, al base, teflon, rogers, nelco |
| Copper th IC kness | 1/2oz, 1oz, 2oz, 3oz, 4oz, 5oz |
| board thickness | 8-236mil(0.2-6.0mm) |
| Min.line width/space | 3/3 mil(75/75um) |
| Min. drill size | 8 mil(0.2mm) |
| Min. HDI laser drill size | 3 mil(0.067mm) |
| Tolerance of hole size | 2 mil(0.05mm) |
| PTH copper thickness | 1 mil(25 um) |
| Solder mask color | Green, blue, yellow, white, black, red |
| Peelable solder mask | yes |
| surface treating | HASL(ROHS), ENING, OSP, IMMERSION SILVER, IMMERSION TIN, flash gold, gold finger |
| Gold thickness | 2-30u" (0.05-0.76um) |
| Blind hole/buried hole | yes |
| V-cut | yes |
PCBA capability
| Technology | SMT, THT | ||
| SMT capability | 2, 000, 000 points per day | ||
| DIP capability | 300, 000 points per day | ||
| Experiences | QFP, BGA, μBGA, CBGA | ||
| Process | Lead-free | ||
| Programming | Yes | ||
| Conformal coating | Yes | ||

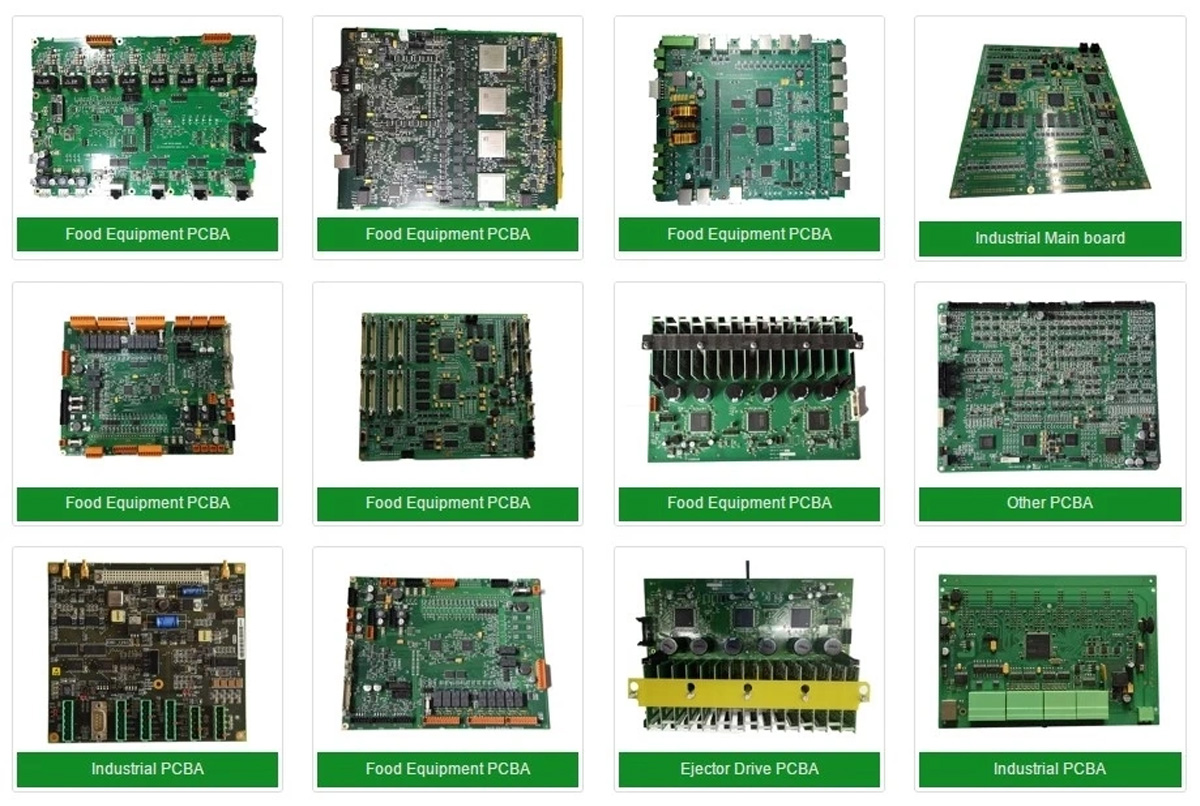

Application
* industrial control,
* medical device,
* food equipment,
* laser module,
* communication device,
* PLC module,
* transducer module,
* traffic control,
* automobile,
* SMArt home system,
We support OEM Electronic Medical Equipment PCB Customized business, Kingford is a professional one-stop PCBA service factory, Welcome to know about our company.
Name: OEM ElectronIC Medical Equipment PCB Customized
PCBA-Testing: X-ray, AOI
SMAll Order: Acceptable
Type: Rigid circuit board
Flame Retardant: V0
Processing Technology: Electrolytic Foil
Insulation Materials: Organic Resin
Material: Complex
Transport Package: Antistatic package+Plastic Box and Carton Box
TradeMARK: Customized
Origin: Shenzhen China
Production Capacity: 100K/Month
